Handling equipment
Block grabs
PZLAssortment of block grabs
Universal mechanical clamp, ideal for construction sites dedicated to civil engineering projects and pavement works. Designed to handle packages of various sizes, this solution allows easy and safe transport of palletized construction materials, including interlocking paving blocks with vertical restraining straps for each row, slabs, curbstones, blocks, and more.
Application sectors:
Finish Type:
Painted

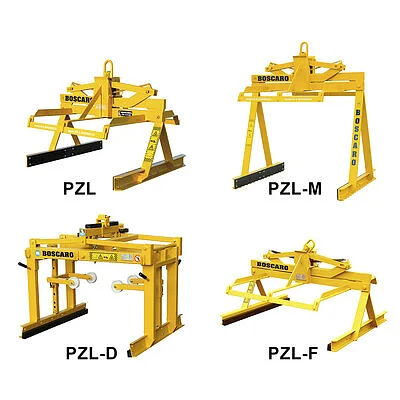

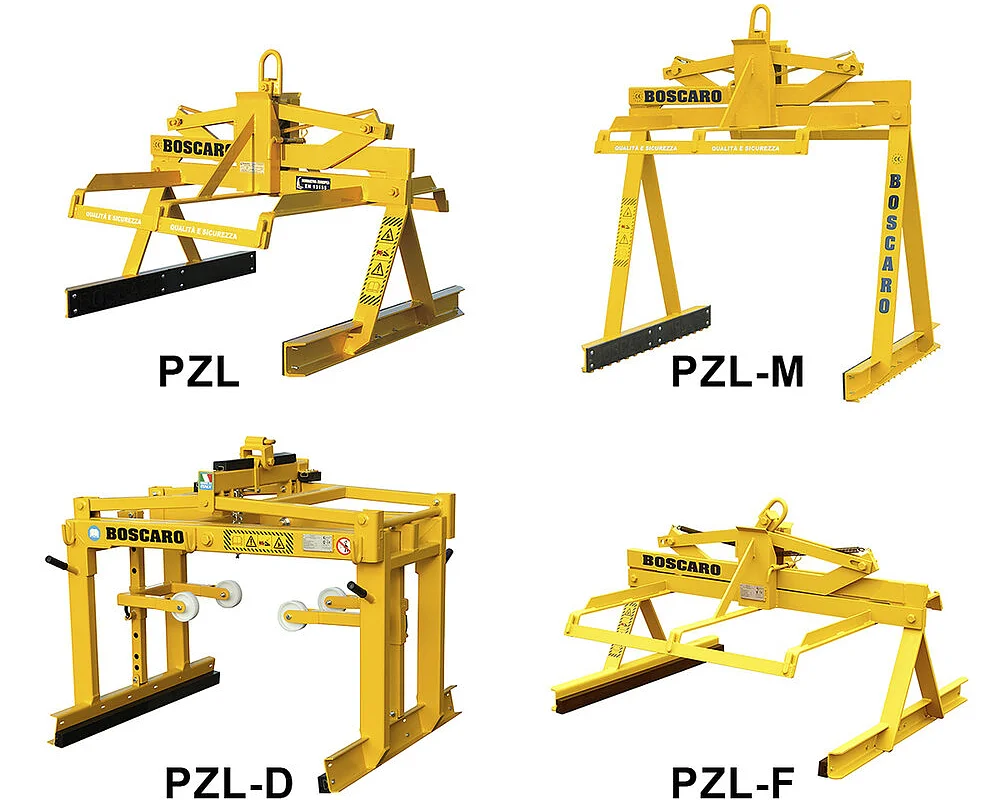

Versions available

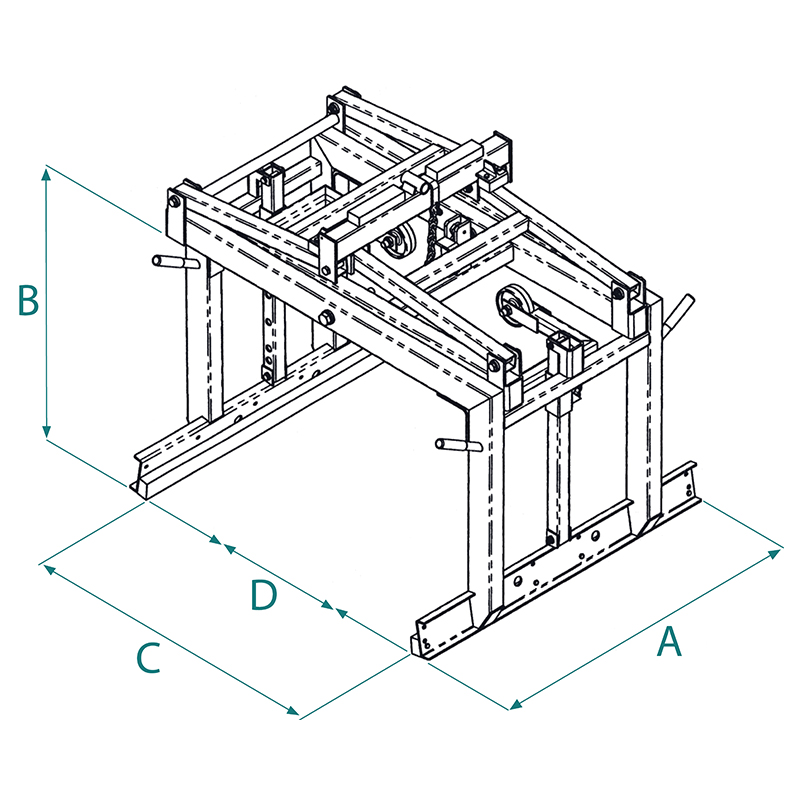

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PZL | 1100 | 155 | 1000 | 450 | 1000 | 900 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-M | 1100 | 200 | 1000 | 900 | 1000 | 900 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-D | 1800 | 225 | 1200 | 850 | 1100 | 400 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-D100 | 1800 | 245 | 1200 | 1000 | 1250 | 600 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-F | 1100 | 175 | 1200 | 450 | 1250 | 1100 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PZL | PZL | 1100 | 155 | 1000 | 450 | 1000 | 900 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-M | PZL-M | 1100 | 200 | 1000 | 900 | 1000 | 900 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-D | PZL-D | 1800 | 225 | 1200 | 850 | 1100 | 400 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-D100 | PZL-D100 | 1800 | 245 | 1200 | 1000 | 1250 | 600 | ||||||||||||||||||||||||||||||||||||||||||||
PZL-F | PZL-F | 1100 | 175 | 1200 | 450 | 1250 | 1100 |
