Lifting beams
Big Bag lifting beam
BIL-BBLifting beam for handling Big Bags

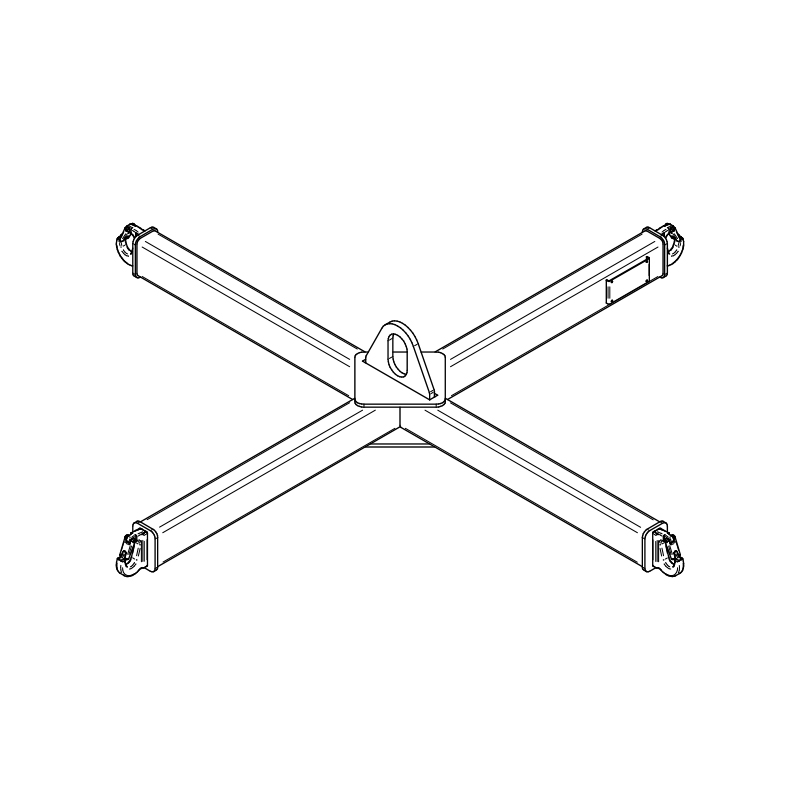

Discover the versatility of our big bag lifting beam, the ideal solution for safely lifting and moving bulk bags. This device is specially designed for use with an overhead crane, utilizing a convenient central upper attachment. With its 4 lifting points, the lifting beam securely anchors the big bag, allowing for safe transport from one workstation to another. Its compact structure and small dimensions make it a space-saving choice in height, ensuring effective workspace management. Bulk bags are widely used for storing and handling compact materials, powders, micro-granules, and processed industrial products. The big bag lifting beam serves as the ideal transport vehicle, offering convenience and safety at every stage of the operation. All equipment is CE certified and supplied complete
Application sectors:
Lifting
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIL-1/800BB | 1000 | 30 | 75 | 50 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-1/900BB | 1000 | 32 | 75 | 50 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-1/1000BB | 1000 | 35 | 75 | 50 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/800BB | 2000 | 35 | 110 | 60 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/900BB | 2000 | 38 | 110 | 60 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/1000BB | 2000 | 41 | 110 | 60 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/800BB | 3000 | 44 | 110 | 60 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/900BB | 3000 | 48 | 110 | 60 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/1000BB | 3000 | 52 | 110 | 60 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/800BB | 5000 | 50 | 135 | 75 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/900BB | 5000 | 55 | 135 | 75 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/1000BB | 5000 | 59 | 135 | 75 | 1000 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIL-1/800BB | BIL-1/800BB | 1000 | 30 | 75 | 50 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-1/900BB | BIL-1/900BB | 1000 | 32 | 75 | 50 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-1/1000BB | BIL-1/1000BB | 1000 | 35 | 75 | 50 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/800BB | BIL-2/800BB | 2000 | 35 | 110 | 60 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/900BB | BIL-2/900BB | 2000 | 38 | 110 | 60 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-2/1000BB | BIL-2/1000BB | 2000 | 41 | 110 | 60 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/800BB | BIL-3/800BB | 3000 | 44 | 110 | 60 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/900BB | BIL-3/900BB | 3000 | 48 | 110 | 60 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-3/1000BB | BIL-3/1000BB | 3000 | 52 | 110 | 60 | 1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/800BB | BIL-5/800BB | 5000 | 50 | 135 | 75 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/900BB | BIL-5/900BB | 5000 | 55 | 135 | 75 | 900 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BIL-5/1000BB | BIL-5/1000BB | 5000 | 59 | 135 | 75 | 1000 | 1 |
