A-DBRRemote-controlled bucket with hydraulic opening
The radio-controlled bucket with hydraulic opening is an innovative accessory designed to simplify and speed up the lifting and handling operations of large quantities of waste material using a crane. This advanced device is equipped with a fully radio-controlled and operable double bottom opening system, allowing the operator to act at a safe distance, thus improving the efficiency and safety of operations.
Application sectors:
Construction
Finish Type:
Painted
Versions available

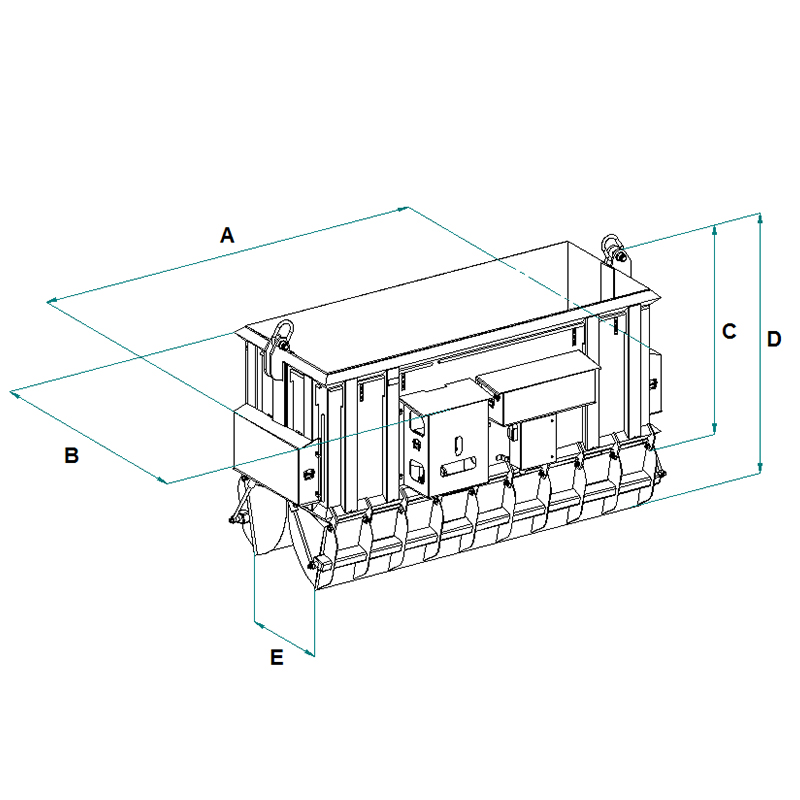

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-400DBR | 8000 | 4000 | 2195 | 2874 | 1935 | 1521 | 2077 | 991 | Batteries | 1 | |||||||||||||||||||||||||||||||||||||||||||
| A-800DBR | 16000 | 8000 | 3450 | 4176 | 1961 | 1914 | 2474 | 1024 | Batteries | 1 | |||||||||||||||||||||||||||||||||||||||||||
| A-1000DBR | 20000 | 10000 | 4400 | 4850 | 2180 | 1778 | 1214 | Batteries | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| A-1200DBR | 24000 | 12000 | 5300 | 4850 | 2180 | 2078 | 1214 | Batteries | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-400DBR | A-400DBR | 8000 | 4000 | 2195 | 2874 | 1935 | 1521 | 2077 | 991 | Batteries | 1 | |||||||||||||||||||||||||||||||||||||||||||
| A-800DBR | A-800DBR | 16000 | 8000 | 3450 | 4176 | 1961 | 1914 | 2474 | 1024 | Batteries | 1 | |||||||||||||||||||||||||||||||||||||||||||
| A-1000DBR | A-1000DBR | 20000 | 10000 | 4400 | 4850 | 2180 | 1778 | 1214 | Batteries | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| A-1200DBR | A-1200DBR | 24000 | 12000 | 5300 | 4850 | 2180 | 2078 | 1214 | Batteries | 1 |
