Modular lifting beam
B-SMBModular lifting beam

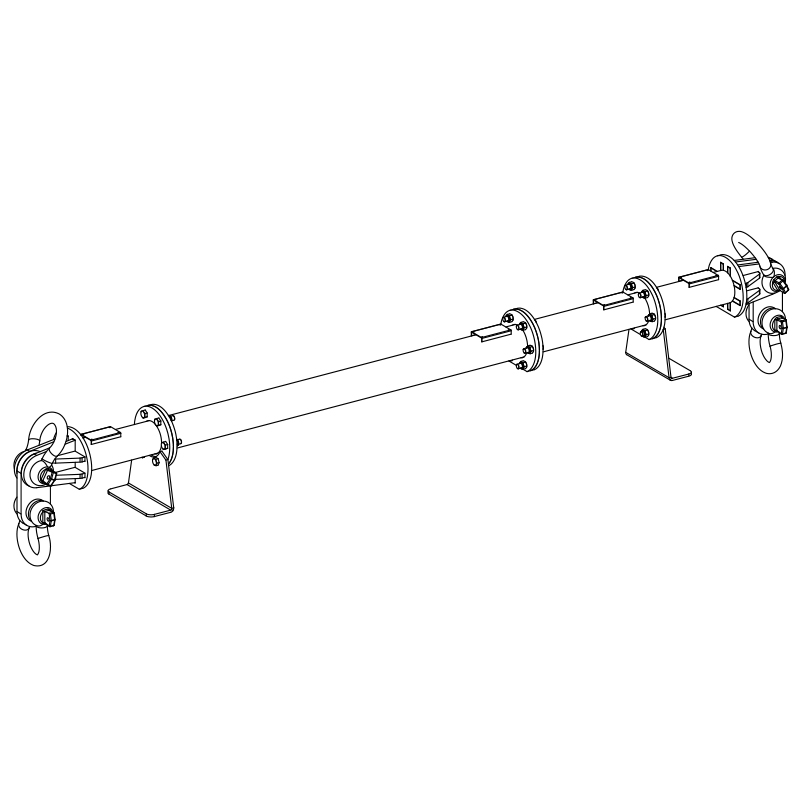

Modular and configurable lifting beams represent the optimal solution, characterized by versatility and cost-efficiency, for a wide range of lifting operations. Thanks to the modular construction system, it is possible to easily reconfigure the lifting beam, allowing for the repeated use of the same components for different lifting operations. The lifting system includes a wide range of easily assembled components. The modular concept is based on the assembly of two end units in combination with segments of variable length. The end units, complete with articulated lobes, evenly distribute the loads on the beam. The flexibility of the system allows for adapting the lifting beam to lifting needs, achieving different lengths through the combination of chosen elements.
Application sectors:
Lifting
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-SMB.8 | 1 | 1000 | 8000 | 500-6500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.16 | 1 | 3000 | 16000 | 500-10000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.24 | 1 | 3000 | 24000 | 500-12000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.34 | 1 | 5000 | 34000 | 1000-14000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.50 | 1 | 7000 | 50000 | 1000-16000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.80 | 1 | 16000 | 80000 | 1000-20000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.170 | 1 | 10000 | 170000 | 2000-22000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.240 | 1 | 50000 | 240000 | 2000-26000 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-SMB.8 | B-SMB.8 | 1 | 1000 | 8000 | 500-6500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.16 | B-SMB.16 | 1 | 3000 | 16000 | 500-10000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.24 | B-SMB.24 | 1 | 3000 | 24000 | 500-12000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.34 | B-SMB.34 | 1 | 5000 | 34000 | 1000-14000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.50 | B-SMB.50 | 1 | 7000 | 50000 | 1000-16000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.80 | B-SMB.80 | 1 | 16000 | 80000 | 1000-20000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.170 | B-SMB.170 | 1 | 10000 | 170000 | 2000-22000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-SMB.240 | B-SMB.240 | 1 | 50000 | 240000 | 2000-26000 |
