Self dumping bins
Forklift self-dumping bin
A-D4STForkliftable self dumping bin for general muck, rubble and waste removal
This self dumpin bin, which incorporates all the features of the A-D model (we will include a link, reference, or small description like on the A-D model), features a useful setup at the bottom that allows for handling with a telehandler or forklift. In addition to having all the characteristics of a self dumping bin and being usable with a construction crane, this model offers the added flexibility of being forked on three sides and handled with the tips of a telehandler or forklift. Its sturdy and durable structure makes this bucket extremely versatile, perfect for large construction sites where the presence of different machines requires multipurpose accessories.
Application sectors:
Finish Type:
Painted
Versions available

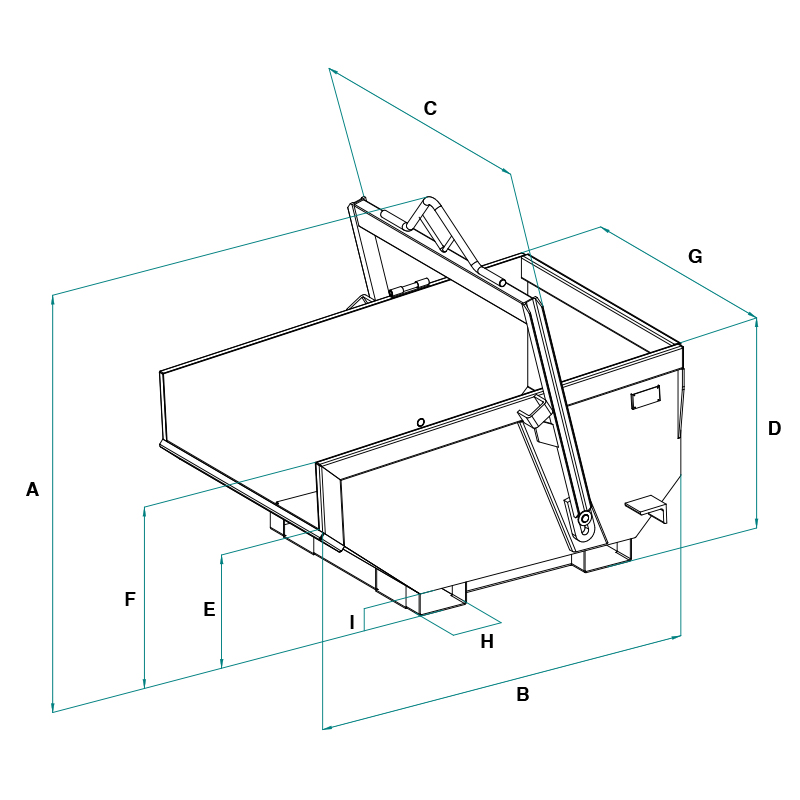

Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-99D4ST | 2000 | 1000 | 275 | 1477 | 1697 | 1276 | 875 | 477 | 765 | 1268 | 210 | 95 | 1 | ||||||||||||||||||||||||||||||||||||||||
A-150D4ST | 3000 | 1500 | 345 | 1500 | 1787 | 1278 | 1005 | 585 | 905 | 1278 | 210 | 95 | 1 | ||||||||||||||||||||||||||||||||||||||||
A-200D4ST | 4000 | 2000 | 615 | 1615 | 1955 | 1612 | 1050 | 630 | 940 | 1592 | 210 | 95 | 1 |
Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-99D4ST | A-99D4ST | 2000 | 1000 | 275 | 1477 | 1697 | 1276 | 875 | 477 | 765 | 1268 | 210 | 95 | 1 | ||||||||||||||||||||||||||||||||||||||||
A-150D4ST | A-150D4ST | 3000 | 1500 | 345 | 1500 | 1787 | 1278 | 1005 | 585 | 905 | 1278 | 210 | 95 | 1 | ||||||||||||||||||||||||||||||||||||||||
A-200D4ST | A-200D4ST | 4000 | 2000 | 615 | 1615 | 1955 | 1612 | 1050 | 630 | 940 | 1592 | 210 | 95 | 1 |
