Conical tipping muck skip
BTB-TTrunk-conical tilting bucket
The trunk-conical tilting bucket represents the perfect balance between load capacity and dimensions, allowing for the movement of various materials, including the heaviest ones, without taking up excessive space. This solution is particularly suitable for construction sites with limited space availability or where a relatively manageable, conical-shaped device that can be easily maneuvered is necessary.
All our buckets are built and tested according to UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204 standards. Each unit comes with a dedicated metal ID plate, a certificate of conformity, and a comprehensive user and maintenance manual to ensure optimal use.
Additionally, all our products are covered by a one-year warranty in accordance with European
Construction

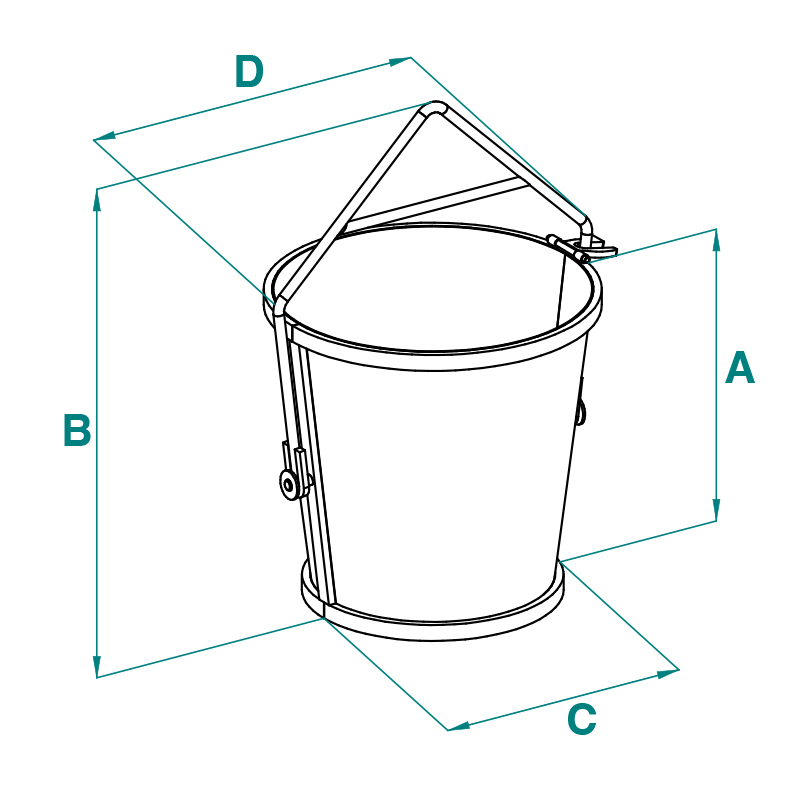

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BTB-09 | 200 | 100 | 31 | 567 | 892 | 444 | 582 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-15 | 300 | 150 | 35 | 635 | 991 | 506 | 655 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-25 | 500 | 250 | 70 | 758 | 1227 | 606 | 784 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-50 | 1000 | 500 | 105 | 963 | 1612 | 823 | 1010 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-75 | 1500 | 750 | 140 | 1075 | 1803 | 879 | 1124 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-99 | 2000 | 1000 | 190 | 1163 | 1933 | 1048 | 1300 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-150 | 3000 | 1500 | 335 | 1264 | 1916 | 1208 | 1464 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-200 | 4000 | 2000 | 445 | 1374 | 2026 | 1325 | 1584 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BTB-09 | BTB-09 | 200 | 100 | 31 | 567 | 892 | 444 | 582 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-15 | BTB-15 | 300 | 150 | 35 | 635 | 991 | 506 | 655 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-25 | BTB-25 | 500 | 250 | 70 | 758 | 1227 | 606 | 784 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-50 | BTB-50 | 1000 | 500 | 105 | 963 | 1612 | 823 | 1010 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-75 | BTB-75 | 1500 | 750 | 140 | 1075 | 1803 | 879 | 1124 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-99 | BTB-99 | 2000 | 1000 | 190 | 1163 | 1933 | 1048 | 1300 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-150 | BTB-150 | 3000 | 1500 | 335 | 1264 | 1916 | 1208 | 1464 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BTB-200 | BTB-200 | 4000 | 2000 | 445 | 1374 | 2026 | 1325 | 1584 | 1 |
