Warehousing logistics
Coil hook
GCCCoil lifting hook

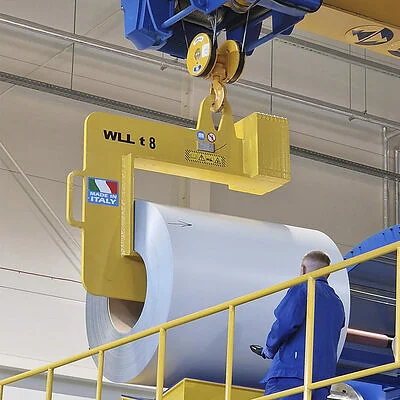

The Boscaro coil lifting hook is the ideal solution for professionals in the industrial sector who require a reliable system for the safe handling of metal coils. Designed to ensure maximum stability and strength, this hook guarantees fast and efficient operations, minimizing downtime and boosting productivity.
Made from high-strength certified steel, it is treated to resist wear, mechanical stress, and corrosion, ensuring long-lasting performance even in the most demanding working conditions.
Technical Features and Advantages
Certified Steel for Heavy Loads
High-quality material, designed to withstand extreme stress.
Guaranteed safety even during prolonged use in harsh
Application sectors:
Industry
Finish Type:
Painted
Versions available

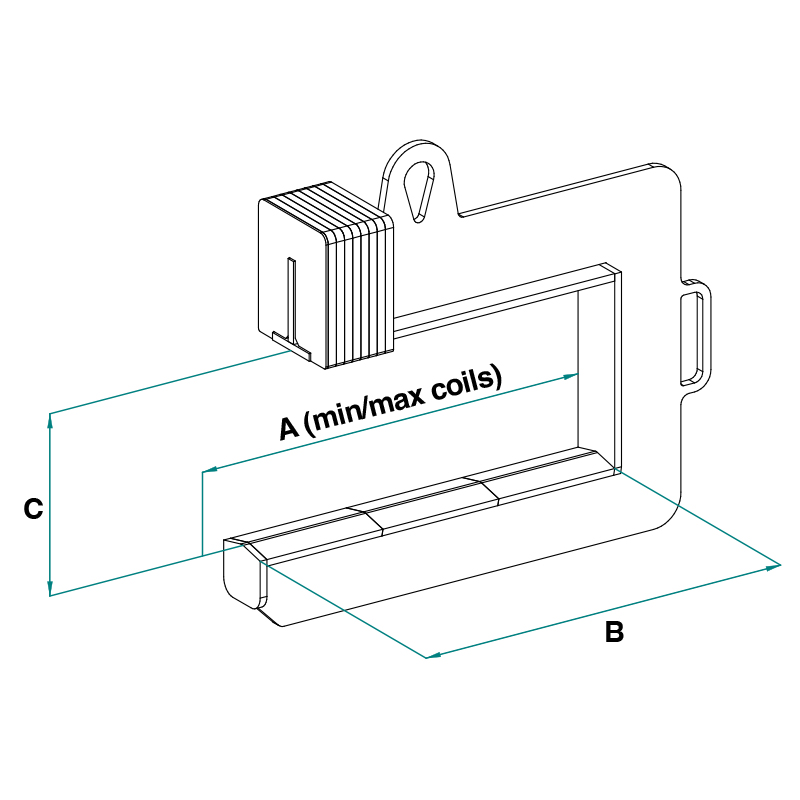

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GCC-5/750 | 5000 | 215 | 500-1000 | 750 | 550 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-8/750 | 8000 | 300 | 500-1000 | 750 | 600 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-10/950 | 10000 | 650 | 625-1250 | 950 | 650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-16/1150 | 16000 | 950 | 750-1500 | 1150 | 700 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-20/1200 | 20000 | 1350 | 750-1500 | 1200 | 750 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GCC-5/750 | GCC-5/750 | 5000 | 215 | 500-1000 | 750 | 550 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-8/750 | GCC-8/750 | 8000 | 300 | 500-1000 | 750 | 600 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-10/950 | GCC-10/950 | 10000 | 650 | 625-1250 | 950 | 650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-16/1150 | GCC-16/1150 | 16000 | 950 | 750-1500 | 1150 | 700 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| GCC-20/1200 | GCC-20/1200 | 20000 | 1350 | 750-1500 | 1200 | 750 | 1 |
