Laydown concrete bucket with large opening and geared opening
BC-GAVLaydown concrete bucket with large opening and wheel
The large-opening laydown concrete bucket with handwheel is a device designed for efficient lifting and transportation of concrete on construction sites and in prefabrication environments. Key Features:
Application sectors:
Construction
Finish Type:
Painted
Versions available

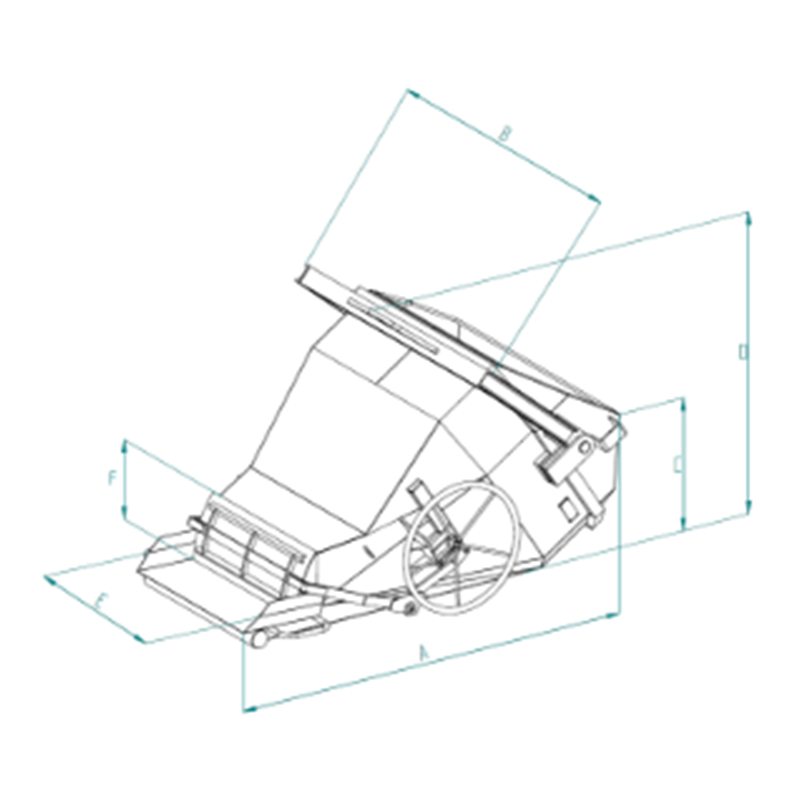

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BC-50GAV | 1300 | 500 | 270 | 1620 | 1400 | 610 | 955 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-75GAV | 1950 | 750 | 340 | 1810 | 1400 | 720 | 1070 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-99GAV | 2600 | 1000 | 410 | 2000 | 1400 | 830 | 1200 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-150GAV | 3900 | 1500 | 490 | 2162 | 1750 | 902 | 1462 | 900 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-200GAV | 5200 | 2000 | 560 | 2361 | 1900 | 960 | 1500 | 900 | 300 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BC-50GAV | BC-50GAV | 1300 | 500 | 270 | 1620 | 1400 | 610 | 955 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-75GAV | BC-75GAV | 1950 | 750 | 340 | 1810 | 1400 | 720 | 1070 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-99GAV | BC-99GAV | 2600 | 1000 | 410 | 2000 | 1400 | 830 | 1200 | 700 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-150GAV | BC-150GAV | 3900 | 1500 | 490 | 2162 | 1750 | 902 | 1462 | 900 | 300 | |||||||||||||||||||||||||||||||||||||||||
| BC-200GAV | BC-200GAV | 5200 | 2000 | 560 | 2361 | 1900 | 960 | 1500 | 900 | 300 |
